Product Parameters:
Model: SX2-2.5-10NT/NTP
Display mode: LCD
Temperature control range: RT~1000 ° C
Recommended operating temperature: ≤ 1000 ° C
Temperature resolution: 1 ° C
Temperature fluctuation: ± 1 ° C (test point 600 ° C)
Temperature uniformity: ± 3 ° C (test point 600 ° C)
Heating rate: It takes about 10 minutes to heat up to 700 degrees Celsius
Furnace material: Ceramic fiber
Working dimensions (DxWxH): 200x120x80 (mm)
Dimensions (DxWxH): 510x430x640 (mm)
Net weight/gross weight: 25KG/32KG
Capacity: 1.92L
Input power: 2.5kw
Power supply voltage: 220V
Note: NTP is 30 segment programmable, NT is non programmable
- Product Details
- Product manual

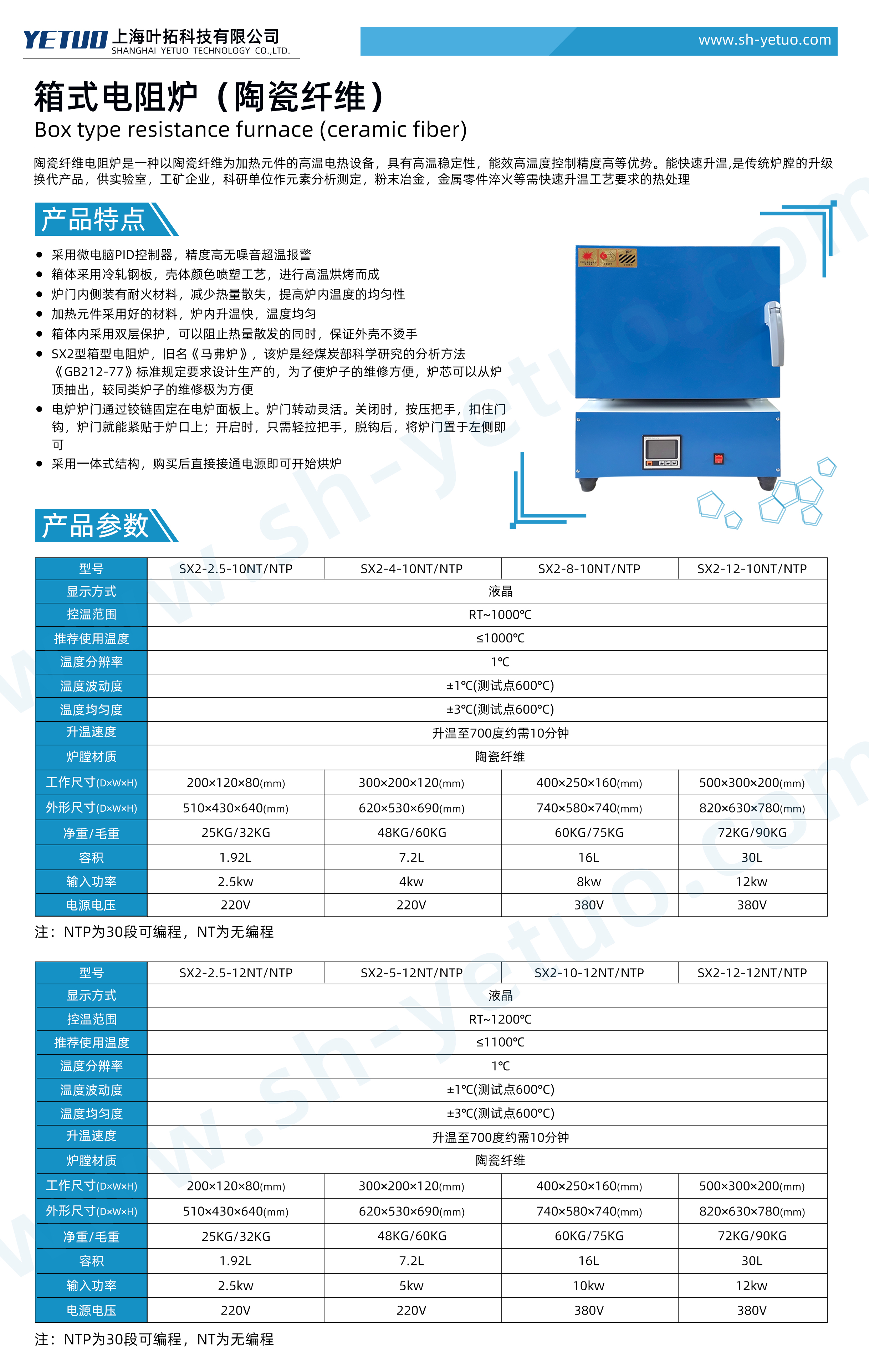

Yetuo SX2-2.5-10NT/NTP Ceramic Fiber Box type Resistance Furnace
Model: SX2-2.5-10NT/NTP
Product Overview:
Ceramic fiber resistance furnace is a high-temperature electric heating equipment that uses ceramic fibers as heating elements, with advantages such as high temperature stability, high energy efficiency, and high temperature control accuracy. Capable of rapid heating, it is an upgraded product of traditional furnaces, used for element analysis and determination in laboratories, industrial and mining enterprises, scientific research units, powder metallurgy, metal parts quenching and other heat treatments that require rapid heating processes.
Product features of Yetuo SX2-2.5-10NT/NTP ceramic fiber box type resistance furnace
Adopting a microcomputer PID controller, with high precision and no noise or overheating alarm.
The box body is made of cold-rolled steel plate, and the shell color is sprayed with plastic technology and baked at high temperature.
The inner side of the furnace door is equipped with refractory materials to reduce heat loss and improve the uniformity of temperature inside the furnace.
The heating element is made of good materials, and the furnace heats up quickly and uniformly.
The box adopts double-layer protection inside, which can prevent heat dissipation while ensuring that the shell is not hot to the touch.
The SX2 box type resistance furnace, formerly known as the "muffle furnace", was designed and produced according to the requirements of the GB212-77 standard, which was scientifically researched by the Ministry of Coal. In order to facilitate the maintenance of the furnace, the core can be extracted from the top of the furnace, which is extremely convenient for maintenance compared to similar furnaces.
The electric furnace door is fixed to the electric furnace panel through a chain. The furnace door rotates flexibly. When closing, press the handle and fasten the door hook, and the furnace door can be tightly attached to the furnace mouth; When opening, simply pull the handle lightly, release the hook, and place the furnace door on the left side.
Adopting an integrated structure, the oven can be started by directly connecting the power supply after purchase.
